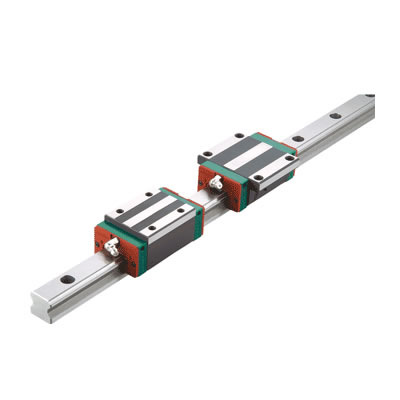

Q1 series-quiet linear guideway

(1) Low noise design The use of synchronous coupling can make the balls evenly spaced, the metal sound of the balls hitting each other disappears,and the intensity of sharp high-frequency sounds is effectively reduced. Compared with the previous series,the total noise intensity is effectively reduced by approximately 7.7 decibels in each speed range.

(2) Self-lubricating design does not require adding oil. The patented synchronous coupling is designed with an oil storage space in the middle interval,which can provide the lubrication needs of the steel balls during operation, and can evenly distribute the lubricating oil when passing through the direction rotation part.It is replenished in the oil storage space to continue to lubricate the steel balls evenly, so the frequency of replenishing lubricating oil can be effectively reduced. After testing,high-performance lithium soap-based grease was added before leaving the factory. Under 0.2 times the dynamic rated load, it can be used continuously for more than 2,500 kilometers without causing fatigue damage.Therefore, high-performance lubricating grease is added at the factory, and no maintenance is required under normal use to ensure its service life.

(3) Improve the smoothness of motion. When traditional linear slide rails without synchronous couplings start to run, the steel balls on the load side will move first, and then push the steel balls in the direction rotation part and the no-load side, causing a chain of back and forth collisions, causing Frictional resistance fluctuates dramatically. The Q1 Type linear slide using SynchMotion TM technology has a synchronous coupling that connects all the steel balls in the same cycle in series. Therefore, when the slider starts to move, all the steel balls start almost at the same time, and there is no back and forth collision between the steel balls. , while maintaining a certain motion inertia, the variation range of friction resistance can be effectively reduced.

(4) High-speed design The spacer design of the synchronous coupling can eliminate the mutual friction between the balls, and HIWIN's patented design makes annular line contact between the balls and the synchronous coupling, which can reduce the contact area between the two. , thereby effectively reducing frictional resistance, giving SynchMotion TM silent linear slide rails excellent high-speed performance.

is suitable for the electronics industry that requires high speed, quietness and low dust generation.
