MG series-micro linear slide

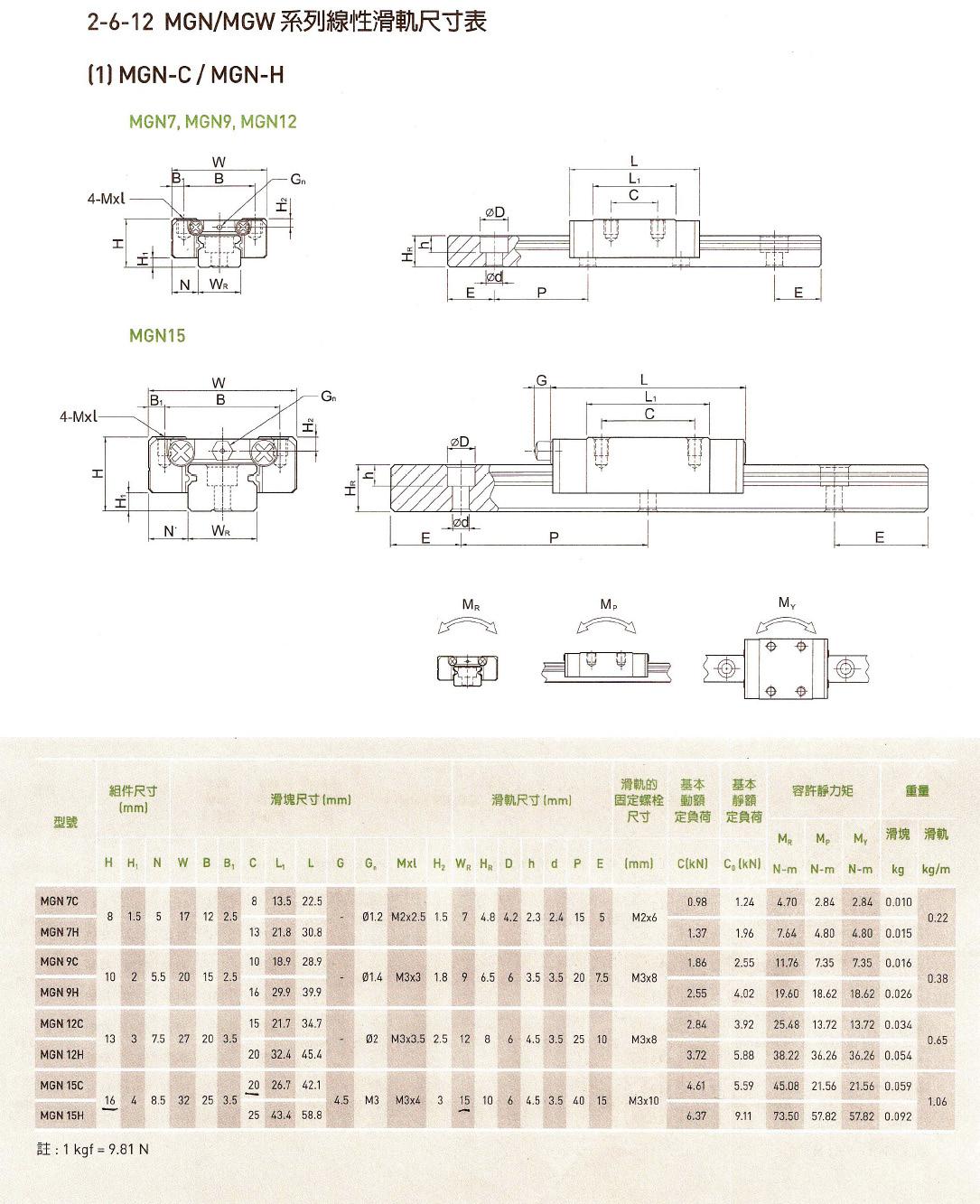

MGN is small and lightweight, making it particularly suitable for use in miniaturized equipment. The slider and slide rail materials are available in stainless steel and alloy steel. Linear slide rails made of stainless steel, including slide blocks, slide rails and other metal accessories such as steel balls, retainers, etc., are all made of stainless steel and have anti-rust properties. It adopts Gothic four-point contact design, which can withstand loads in all directions and has the characteristics of strong rigidity and high precision. It has a steel ball retainer design and is interchangeable as long as the accuracy allows.

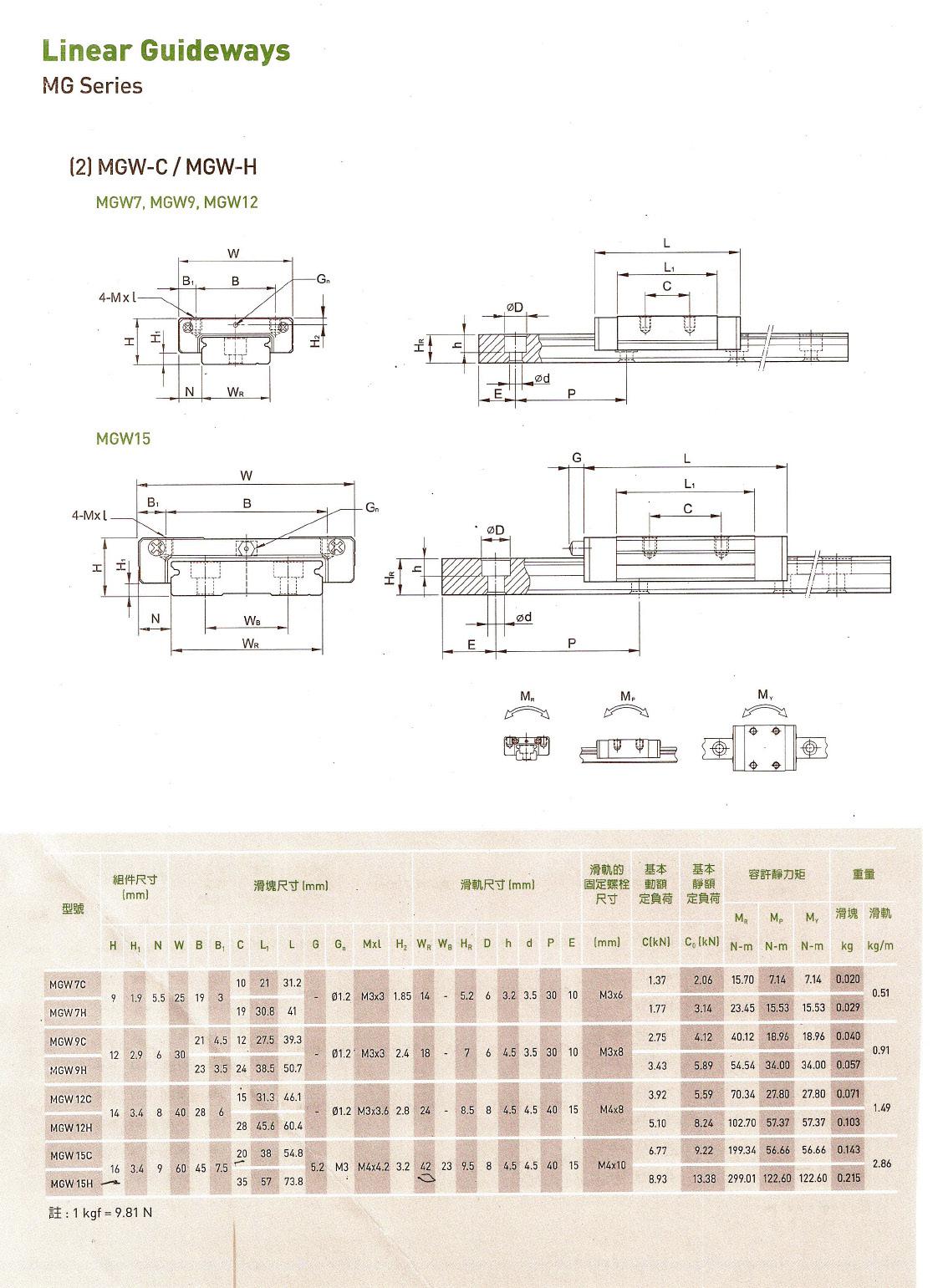

MGW (Wide Width) The design of widened slide rails greatly improves the moment load capacity and can be used on a single axis. Gothic four-point contact design can withstand loads in various directions and has high rigidity. The slider is equipped with a tiny holding steel wire, and the steel ball will not fall off even if the slider is removed.

The slide rails, slide blocks and all metal accessories are made of stainless steel and are corrosion-resistant.

Semiconductor manufacturing equipment Printed circuit boards IC assembly equipment Medical equipment Robot arms Precision measurement instruments Office automation equipment Other small linear sliding devices
